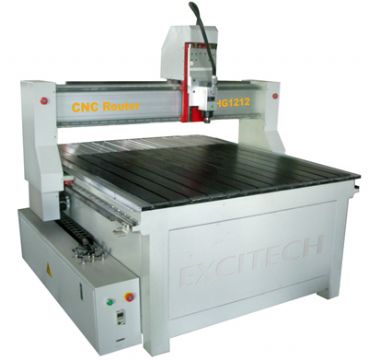

Detailed Selling Lead DescriptionBrand: SH
Model: G1212
Min. Order: 1
Features:
Suitable Materials
Wood, Plastic, Aluminium, Di-Bond, Engraving Board, Fomex, Engineering plastics, marble,
acrylic, perspex, PVC, Composite panel, Copper, Alloys, MDF, etc.
PARAMETERS:
NO. Discription Parameter
1 X-Y-Z Working Area 1200x1200x120mm
2 Table Size 1340X1540mm
3 X-Y-Z Traveling Positioning Accuracy ±0.05/300mm
4 X-Y-Z repositioning Positioning Accuracy ±0.04mm
5 Table Size T-slot Extrusions
6 Frame Cast Steel
7 X, Z Structure Hiwin Ball Screw
8 Y Structure Ball Screw and Hiwin Rail Shaft Linear Bearings
9 Max. Power Consumption(Without spindle) 1.2KW
10 Max.Rapid Travel Rate 10000mm/min
11 Max.Working Speed 6000mm/min
12 Spindle Power Motor 1.5Kw self-coolant spindle
13 Spindle Speed 0-24000RPM
14 Drive Motors Stepper Motors
15 Working Voltage AC220V/50/60Hz (Option: 380V)
16 Command Language G Code
17 Operating System DSP System (Mach3 PC Software)
18 Interface USB
19 Flash Memory 128M (U Disk)
20 Collet ER16
21 X-Y Resolution <0.01mm
22 Software Compatability Ucancam software, Type3 Software, (Option:Artcam Software)
23 Running Environemt Temperature: 0℃～45℃
Relative humidity: 30%～75%
24 Packing Size 1850x1850x1450mm
25 Net Weight 380KG
26 Gross Weight 500KG
|
