Detailed Selling Lead DescriptionBrand: Germany Rosler
Model: R180/530 TE-30
Price: CNY 1480000 / tai
Min. Order: 1 tai
Rosler Germany Moreton vibration resistant test machine
M03D06KP1

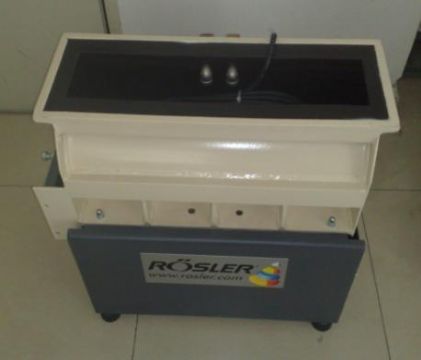

Rosler Trough Vibrator R 180/530 TE-30
Processing Trough:
a. Stable, vibration-resistant weldment with special ribbing
b. Stress-free annealed welding construction
c. Lining of the processing trough:hot-casted polyurethane
d. Thickness:10mm
e. Dimensions of the trough: D: 180MM L:530MM
Machine Frame:
a. Stable weldment with seat for the trough
b. Processing trough situated on helical springs
Machine Drive:
a. Drive by 1 electric motors situated under the trough
b. Power: 1x0.65KW
c. Speed:3000rpm
d. Voltage:230/400 V.3PH N/PE.50HZ
C2203100
Switch Unit E51-0.65
Designed for the vibro-finishing process
a. combined on/off-main switch
b. on/off tip button for processing speed
c. overload protection for processing speed
d. timer for processing time
e. connection possibility for the metering unit
f. triggering of a driver motor
g. coloration:RAL 7032 pebble grey
h. standard operation voltage:400/230 V.50HZ,3PH N/PE
V.50HZ,3PH N/PE
i. standard control voltage:230v 50hz
j. degree of protection:IP 54
k. ambience temperature +5up to +40 deg.celsius
M1601008
Metering Unit D1-4
a. for dosing weter-compound mixtrue
b. dosing quantity can be stepless adjusted from 0-4 l/h
|
