Detailed Selling Lead DescriptionPrice: USD 4.2 / m2
Min. Order: 10000m2 m2
wire fence, wire mesh fence , wire fencing)

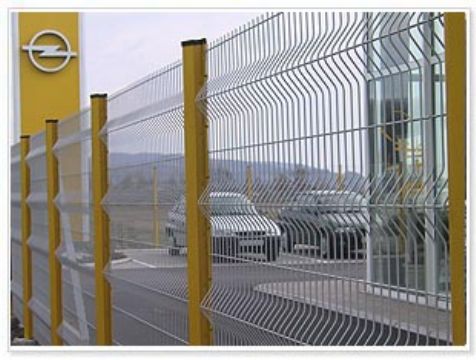

Weld Mesh Fencing is rigid structure of security fencing system.
Welded Mesh Security Fencing is a combination of wires in the horizontal and vertical direction welded at their junctions to provide a rigid fence. A number of differing designs are manufactured from 3mm to 8mm wire at varying spacings for economy or strength. Styles with minimum horizontal bars widely spaced are used to restrict or deny climbing ( as in pool fencing) . These often have RHS welded at top and bottom for strength and smooth lines. Styles with the thicker 8mm wire are used for strength and along with those of 5mm wire are often roll formed into triangular shapes at both Top and Bottom to provide the strength required and eliminate sharp edges. Most Weldmesh is supplied in a " Hot Galvanised " finish, due to their exposure to the elements and particularly salt laden atmospheres. However, for a more pleasing effect they can be Powder Coated in a range of popular colours. Weldmesh in heavy gauge wire, at spacings of 50mm horizontally, is used in Electical Sub Station Security, due to the inability to use the horizontal members as toe holes. Combined with Barbed or Razor wire this presents an extremely secure fence to entry.
We have developed a new type of welded mesh fences that are sold well abroad. Detail as follows:
A. Specifications: Height From 630mm to 2430mm; Width From 1030mm to 2510mm.
B. Corner post: 48 x 2.5mm
C. Wire gauge: 3mm to 8mm
D. The aperture size: 50 x 140mm, 50 x 150mm, 50 x 200mm, 75 x 150mm
E. Available in a range of sizes, colors
F.Post of Fence: RHS 60 x 40mm, 60 x 60mm, 50 x50mm, 80 x 40mm, 50 x 70mm, 70 x70mm, 100 x40mm, 90 x 50mm and 80 x50mm.
G.Colors Available:
Build to your specifications as well. Specifications can be customized.
Weld mesh fencing-1
Weld mesh fencing-2
Roll Top fencing-3
Standard Size Panels and Fencing Posts
Type Fence width
Panel Dimensions
Mesh Size Standard
of Panels Recommended
Posts of Height
Fence Panel 1
2460 mm
50 x 100 mm
50 x 150 mm
50 x 200 mm
55 x 200 mm 1030 mm
1230 mm
1430 mm
1630 mm
1830 mm
2030 mm
2230 mm
2430 mm 1500 mm
1750 mm
2000 mm
2250 mm
2500 mm
2750 mm
3000 mm
3000 mm
Fence Panel 2
2510 mm
50 x 100 mm
50 x 150 mm
50 x 200 mm
55 x 200 mm 1030 mm
1230 mm
1430 mm
1630 mm
1830 mm
2030 mm 1500 mm
1750 mm
2000 mm
2250 mm
2500 mm
2750 mm
Fence Panel 3
2510 mm
50 x 150 mm
50 x 200 mm 1030 mm
1230 mm
1430 mm
1530 mm
1730 mm
1830 mm
1930 mm
2030 mm
2230 mm
2430 mm 1500 mm
1750 mm
2000 mm
2250 mm
2500 mm
2500 mm
2750 mm
2750 mm
3000 mm
3000 mm
We also manufacture other custom size panels.
Trade offer presented at the individual query.
|
