Detailed Selling Lead DescriptionBrand: hongyang
Model: A
Price: CNY 20800 / piece
Min. Order: 1 piece

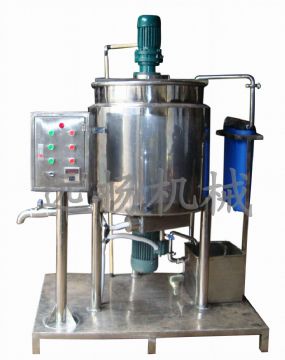

Type A heating shear emulsification equipment
Main features
Heating interlayer. The material is 304 stainless steel sheets both inside and outside. The width of inside sheet is 1.5mm while the outside is 1.0mm. Also heating in a constant temperature. By water or oil. Providing the function of mixing, homogenizing, emulsification and three-level water treatment. The production capacity is pretty high stable. 300 kilogram products can be made in 30 minute. It’s the first choice for small and medium production of shampoo, body lotion, Auto Water Wax, Table board liquid, hair conditioner, Leather polish and so on.
Operating principle
Can use the running water or well water directly.The Pipeline High Shear Dispersing Emulsifier is a high-performance equipment. It can make the material processing continuously and circularly. There are three series of stator and rotor which are dual and multi-bite in the narrow reactor. The motor-driven rotor revolesat a high speed that generates a strong axial suction. The suction make the materials into the emulsification pump. The materials are scattered, sheared and emulsified in the shortest time. As a result, the distribution range of particle radius will be markedly narrowed that make the product produced finer and long-term stability.
Technical description
Power: 380V Agitation motor: 1.5kw
Emulsification motor: 2.2kw Water motor: 0.37kw
Weight: 300kg Volume: 300L
Heating power: 18kw
External dimensions: 1.3×0.9×1.9(m)
|
