Detailed Selling Lead DescriptionBrand: hongyang
Price: CNY 18800 / piece
Min. Order: 1 piece

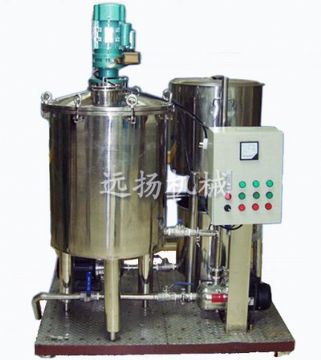

Type A tube emulsification equipment
Main features
The material is 304 stainless steel. Which of the sheets is 2.0mm. Providing the function of mixing, dispersion, high-performace shearing and emulsification(three-level emulsification) and three-level water treatment. High production capacity and stable quality of tube type emulsification. It’s the perfect choice for producing clean product such as shampoo, washing detergent, foam washing liquid.
Operating principle
The Pipeline High Shear Dispersing Emulsifier is a high-performance equipment. It can make the material processing continuously and circularly. There are three series of stator and rotor which are dual and multi-bite in the narrow reactor. The motor-driven rotor revolesat a high speed that generates a strong axial suction. The suction make the materials into the emulsification pump. The materials are scattered,sheared and emulsified in the shortest time. As a result, the distribution range of particle radius will be markedly narrowed that make the product produced finer and long-term stability.
Technical description
Power: 380V Agitation motor: 1.5kw
Emulsification motor: 0.55kw Water motor: 0.37kw
Weight: 250kg Volume: 300L
External dimensions: 1.5 × 0.95 x 1.78(m)
|
